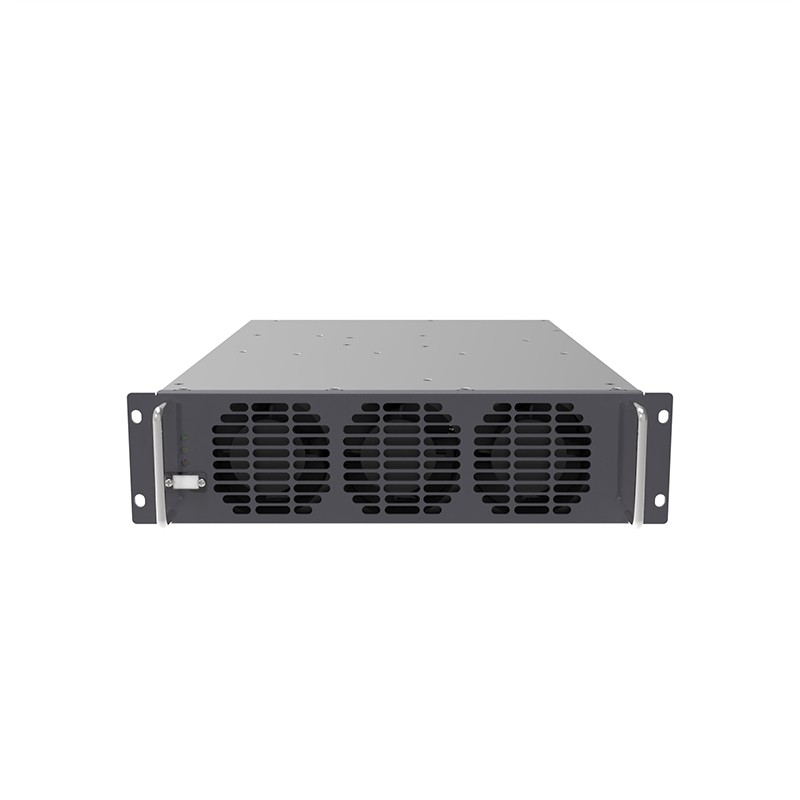

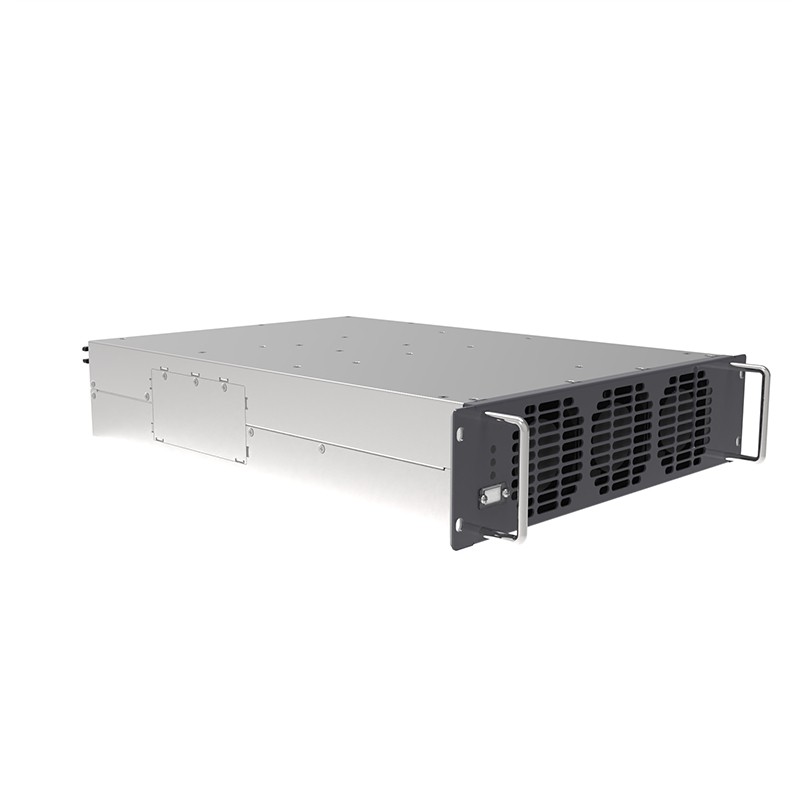

| National standard 30kW charging module |
Model number |
YFL100030A National standard charging module |
|
Working environment condition |
Operating temperature |
The range from -40 ° C to +75 ° C is reduced when the temperature is higher than 55 ° C |
|
Storage temperature |
－40℃～＋70℃ | |
| Relative humidity |
≤ 95%RH, no condensation |
|
|
Cooling mode |
Forced air cooling |
|
| altitude | 2000m (Derated above 2000m) | |
|
Atmospheric pressure |
79kPa～106kPa | |
|
Ac input |
Input standard | Three-phase +PE |
|
Voltage range |
266Vac～456Vac | |
|
Do not work under maximum static voltage |
600Vac | |
|
Rated voltage |
380Vac | |
|
Maximum input current |
58A | |
|
Efficiency (full load) |
>95.5% | |
|
Frequency range |
40Hz～65Hz | |
| THD | ≤5％ | |
|
Dc output |
Voltage range |
200Vdc～1000Vdc |
|
Constant power output voltage range |
300Vdc～1000Vdc | |
|
Current range |
0 ~ 100A (current limit point can be set) |
|
|
Rated current |
30A (required for setting current limit point) |
|
|
Voltage regulation accuracy |
＜±0.5％ | |
|
Steady flow accuracy |
≤± 1% (output load 20% rated current ~ 100% current change) |
|
|
Load adjustment rate |
≤±0.5％ | |
|
Grid adjustment rate |
≤± 0.1% (test range 320V ~ 456V) |
|
|
Start the overshoot |
≤±3％ | |
|
Overall dimensions and weight |
dimension |
84mm (H) ×300mm (W) ×437mm (D) |
|
weight |
≤15kg | |
|
other |
Communication mode |
CAN bus |
|
noise |
<65dB | |
|
Power density |
44.6W/in³ | |
|
Mean time to failure (MTBF) |
>400,000 hours |
|
|
authentication |
Cape certification |
The relationship between output power and input voltage
The relationship between output voltage and output current
Ambient temperature
