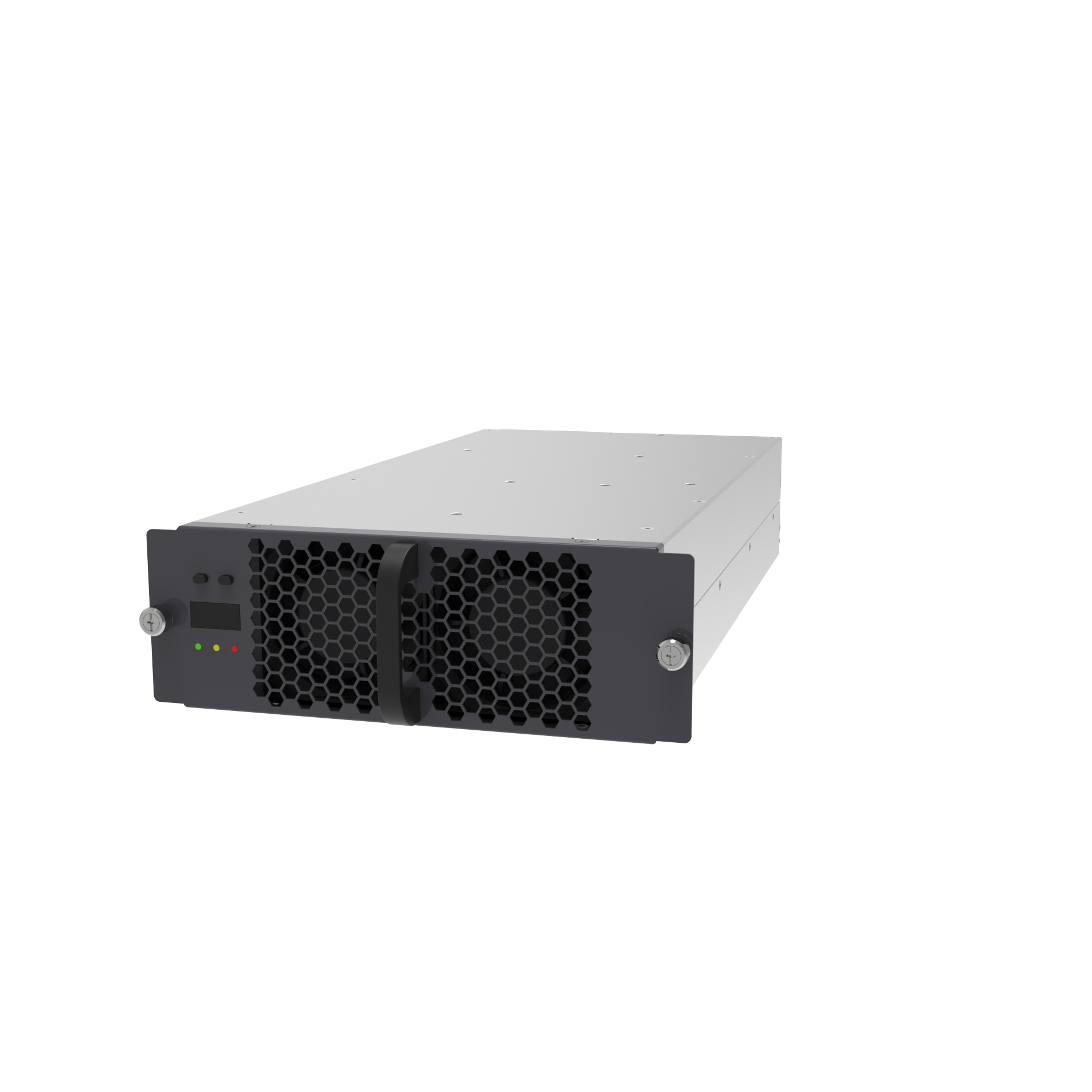

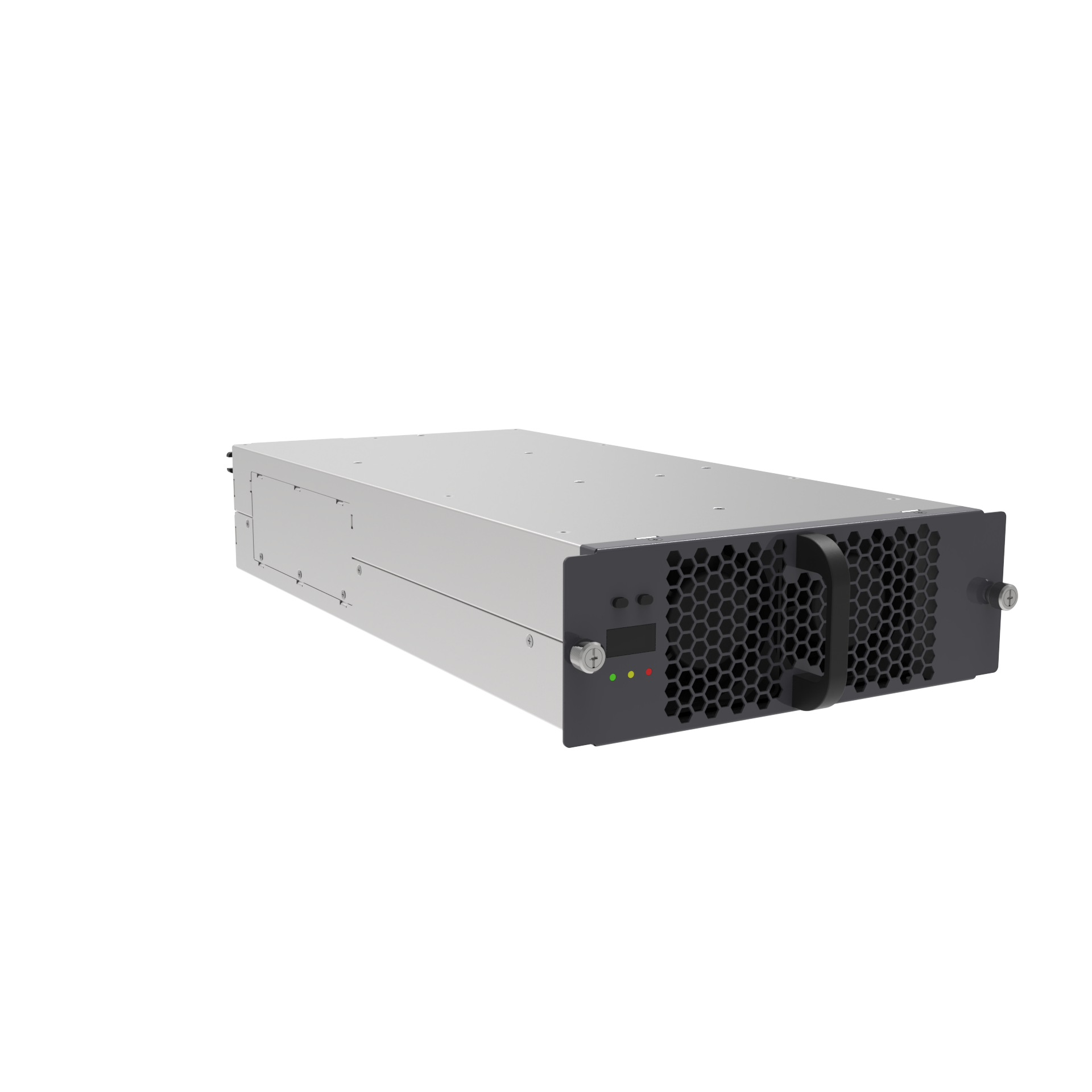

| 40kW Charging Modules | Models | YFL100040G-A Air-cooled Triple Unified Charging Module |
| Working environment conditions | operating temperature | －40℃～＋75℃，55℃ Above needs to be utilized at a reduced rate |
| storage temperature | －40℃～＋85℃ | |
| relative humidity | ≤95％RH,non-condensing | |
| cooling method | forced air cooling | |
| altitude | 2000m,2000m Above needs to be utilized at a reduced rate | |
| atmospheric pressure | 79kPa～106kPa | |
| AC input | input format | three-phase + PE |
| voltage range | 266Vac～456Vac | |
| maximum static voltage without operation | 600Vac | |
| rated voltage | 380Vac | |
| maximum input current | 80A | |
| frequency range | 40Hz～65Hz | |
| rated frequency | 50Hz/60HZ | |
| DC output | voltage range | 200Vdc～1000Vdc |
| current range | 0～133.3A (Current limiting points can be set) | |
| rated current | 40A (Required for setting current limit points) | |
| voltage stabilization accuracy | <±0.5% (200~1000V0~20MHz) | |
| stabilization accuracy | ≤±1％ (output load 20% of rated current to 100% current change) | |
| load adjustment ratio | ≤±0.5％ | |
| grid adjustment ratio | ≤±0.1％ (test range 320V to 456V) | |
| starting overshoot | ≤±3％ | |
| Power factor and THD | power factor | 30%load≥0.95 |
| 50%load≥0.98 | ||
| 100%load≥0.99 | ||
| THD | ≤5% @50%~100% full load output power | |
| Noise Indicator | peak murmur | ≤1%(200~1000V,0~20MHz) |
| Mechanical parameters | sizes | 84mm(H)x248mm(W)x458mm(D) |
| weights | ≤17kg |
