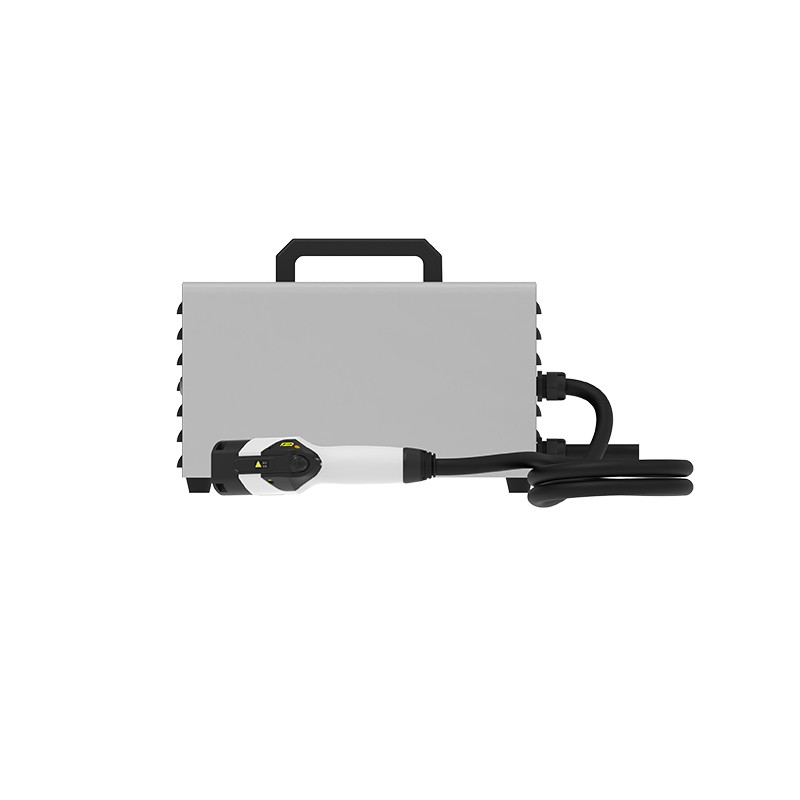

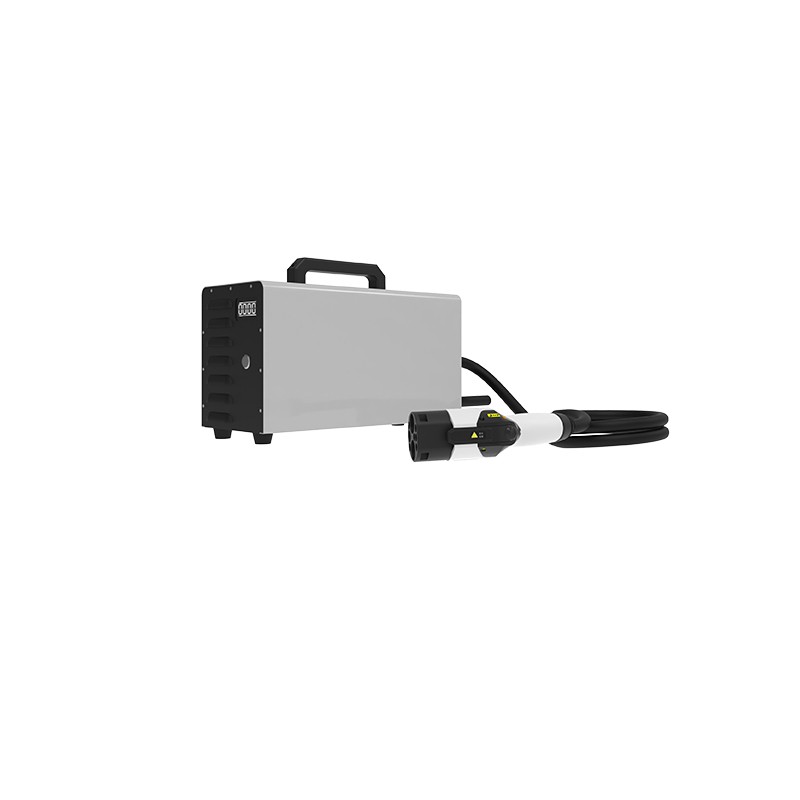

| model | YFL-Y-DC007A | |
| project | parameter | |
| Electrical specifications | Wiring method | L、N、PE |
| Input voltage range | Single phase input 90VAC to 265VAC | |
| Maximum input current | 32A | |
| frequency | 47Hz-63Hz | |
| Maximum output power | 7kW, constant power above 350V | |
| Output maximum current | 20A | |
| Adjustable range of output voltage | 100VDC ～ 750VDC | |
| Output leakage current action value | <3.5mA@264VAC | |
| Output power factor | ≥0.99@220VAC 50-100% Load | |
| Usage environment | working temperature | ‘-20℃至55℃ |
| humidity | Maximum 93% (relative humidity) | |
| altitude | ≤2000m | |
| IP rating | IP20 | |
| Cooling method | Forced air cooling | |
| Institutional specifications | Product size | 450*188*278mm |
| Shell material | sheet metal | |
| Net weight of equipment | ≤ 18KG (with gun) | |
| Output gun line | 5M 9-hole DC gun | |
| Noise | ≤60dB(A) | |
| protection mechanism | Input measurement | Low voltage, overvoltage, leakage protection, and over temperature protection |
| Output measurement | Overcurrent, overvoltage, abnormal gun pulling protection | |
| inside | Over temperature, MCU function error detection | |
| Status display | Status indication | LED tri color light |
| display | OLED display screen (optional) | |
| Communication standards | Plug and play (standard), card charging (optional), 4G (optional), LEN (optional) | |
| Execution standards | GB/T 18487.1/. 2, GB-T 27930, ETSI300132-3 (Surge Current) | |
