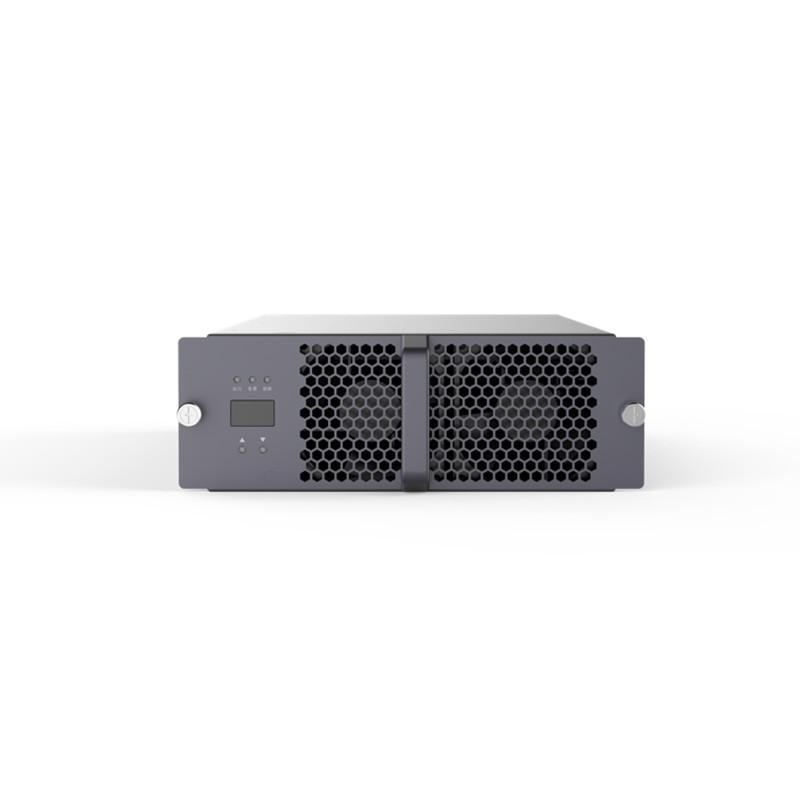

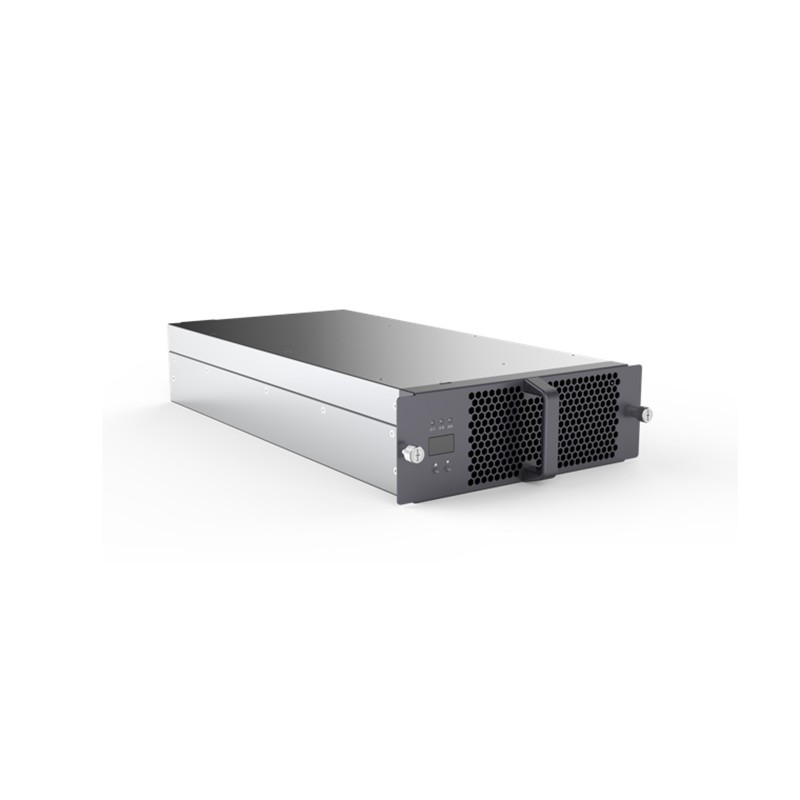

| 20kW Charging module | Model number | YFL100020A State Grid Unified Charging Module |
| Working environment condition | Operating temperature | The range from -40 ° C to +75 ° C is reduced when the temperature is higher than 55 ° C |
| Storage temperature | －40℃～＋70℃ | |
| Relative humidity | ≤95％RH，non-condensing | |
| Cooling mode | Forced air cooling | |
| altitude | 2000m (Derated above 2000m) | |
| Atmospheric pressure | 79kPa～106kPa | |
| Ac input | Input standard |
Three-phase +PE |
|
Voltage range |
266Vac～456Vac | |
|
Do not work under maximum static voltage |
600Vac | |
|
Rated voltage |
380Vac | |
| Maximum input current | 32A | |
|
Efficiency (full load) |
96% | |
|
Frequency range |
40Hz～65Hz | |
| THD | ≤5％ | |
| Dc output |
Voltage range |
200Vdc～1000Vdc |
|
Constant power output voltage range |
300Vdc～1000Vdc | |
|
Current range |
0～67A(Current limit point can be set) | |
|
Rated current |
20A (Required for setting current limit point) | |
|
Voltage regulation accuracy |
＜±0.5％ | |
|
Steady flow accuracy |
≤±1％(Output load 20% rated current ~ 100% current change) | |
|
Load adjustment rate |
≤±0.5％ | |
|
Grid adjustment rate |
≤±0.1％(Test range 320V ~ 456V) | |
|
Start the overshoot |
≤±3％ | |
|
Overall dimensions and weight |
dimension |
84mm (H) ×218mm (W) ×458mm (D) |
|
weight |
≤13kg | |
|
other |
Communication mode |
CAN bus |
|
noise |
<65dB | |
|
Power density |
39.0W/in³ | |
| Mean time without failure（MTBF) | >400,000小时 | |
|
authentication |
Cape certification |
|
|
|
||
The relationship between output power and input voltage
Out-of-output characteristic
Ambient temperature
